Project Description
Technical Features
1.Higher capacity and higher energy density.
2.Longer service life.
3.Excellent deep cycle property.
4.Private alloy and paste recipe for deep cycle application.
5.Refilling plugs with special construction guarantee less water consumption.
6.SiO2-PVC separator in nano grade.
7.Advanced TTP welding and heat sealing technology.
8.Terminals with high conductivity are very good at high current discharging.
9.Containers and lids are impact resistant and made of polypropylene(PP).
10.Wider operation temperature, safe and reliable.
Parameter
The electric tricycle is a three-wheeled transportation tool that is powered by a battery and driven by a motor to pull goods or people. Electric tricycles are divided into household, freight, and factory models according to their uses. The electric tricycle adopts tube-type large-capacity, which can meet the requirement of continuous discharge for long time work.
Lead-acid batteries for electric tricycles are power sources for electric tricycles, and can also be used as DC power sources for electric four-wheeled vehicles.
Application
1.Battery can be used as power for Golf Cart, Electrical car, Electric Sightseeing Car, toy Car, Mini-truck, The Transportation without Driver;
2.Battery can be used as power source for industrial Mineral firms, Warehouse, dock, Station, Airport and etc.
Design Features
The inside of the battery is connected through wall welding, and the high current discharge performance is good
The battery shell cover is made of PP material, and the shell cover is heat-sealed to avoid leakage when the battery is in use
The grid alloy adopts multi-element corrosion-resistant alloy, and the positive grid adopts pressure casting to solve grid corrosion short circuit
Adopting advanced plate curing and forming technology to improve the binding force of active material and grid, and extend battery life
The positive plate of the battery is tube type, and the negative plate is pasted type, which has long service life and good deep charge and discharge performance.
The use of polyester fiber tube and PVC partition can effectively solve the short circuit problem caused by tube rupture and lead dendrites during use, and extend the service life of the battery
Certificate
CE, UL, IEC60896-21/22, ISO9001, ISO14001, TLC, OHSAS18001, seismic certificates, etc.
Specifications
| Model | Voltage（V) | Capacity(Ah) | Weight（Kg） | Dimension（mm) | |||||||||
| Length | Width | Height | Total Height | Terminal type | |||||||||
| KG | LBS | mm | inch | mm | inch | mm | inch | mm | inch | ||||
| 6-EVF-38A | 12 | 38 | 11.2 | 24.69 | 222 | 8.74 | 106 | 4.17 | 171 | 6.73 | 171 | 6.73 | I7 |

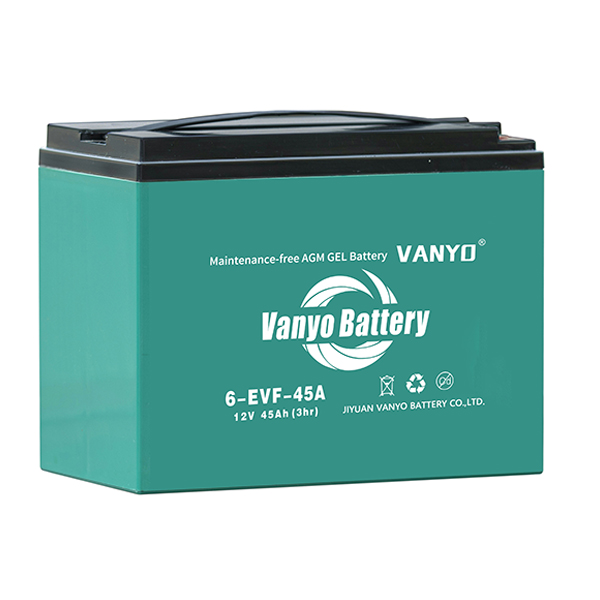

| 6-EVF-45A | 12 | 45 | 12.8 | 28.22 | 224 | 8.82 | 120 | 4.72 | 175 | 6.89 | 175 | 6.89 | I7 |
| 6-EVF-52A | 12 | 52 | 14.4 | 31.75 | 224 | 8.82 | 135 | 5.31 | 178 | 7.01 | 178 | 7.01 | I7 |
| 6-EVF-58A | 12 | 58 | 15.8 | 34.83 | 224 | 8.82 | 149 | 5.87 | 178 | 7.01 | 178 | 7.01 | I7 |
| 6-EVF-39.8 | 12 | 39.8 | 11.8 | 26.01 | 222 | 8.74 | 106 | 4.17 | 171 | 6.73 | 171 | 6.73 | I7 |
| 6-EVF-46.8 | 12 | 46.8 | 13.6 | 29.98 | 224 | 8.82 | 120 | 4.72 | 175 | 6.89 | 175 | 6.89 | I7 |
| 6-EVF-53.8 | 12 | 53.8 | 15.2 | 33.51 | 224 | 8.82 | 135 | 5.31 | 178 | 7.01 | 178 | 7.01 | I7 |
| 6-EVF-59.8 | 12 | 59.8 | 16.8 | 37.04 | 224 | 8.82 | 149 | 5.87 | 178 | 7.01 | 178 | 7.01 | I7 |
