High Rate Discharge VRLA Batteries 12-7 High Rate Discharge VRLA Batteries 12-7

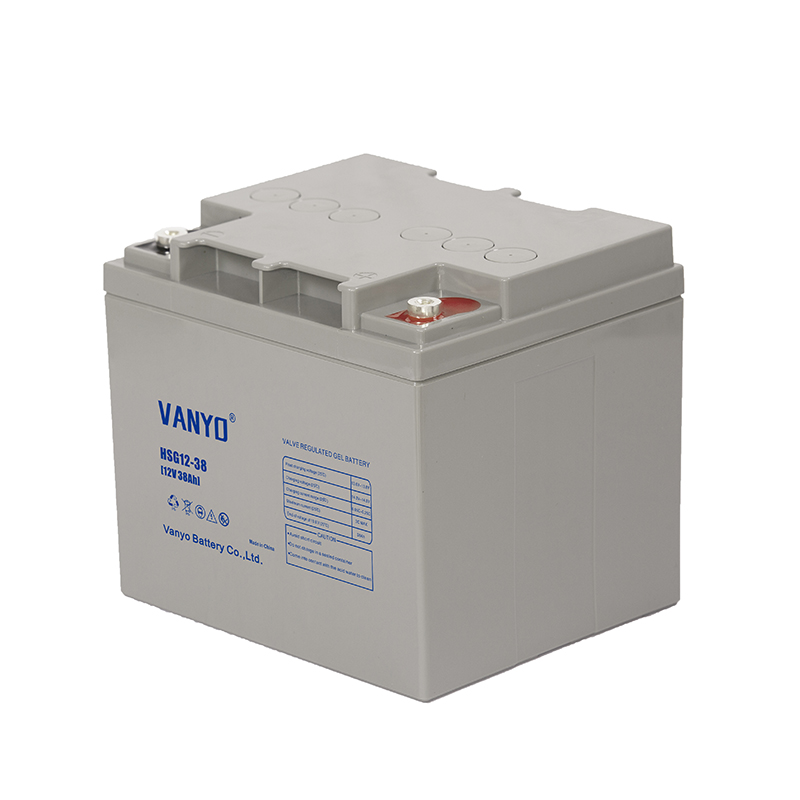

High Rate Discharge VRLA Batteries 12V38 ( 2) High Rate Discharge VRLA Batteries 12V38 ( 2)

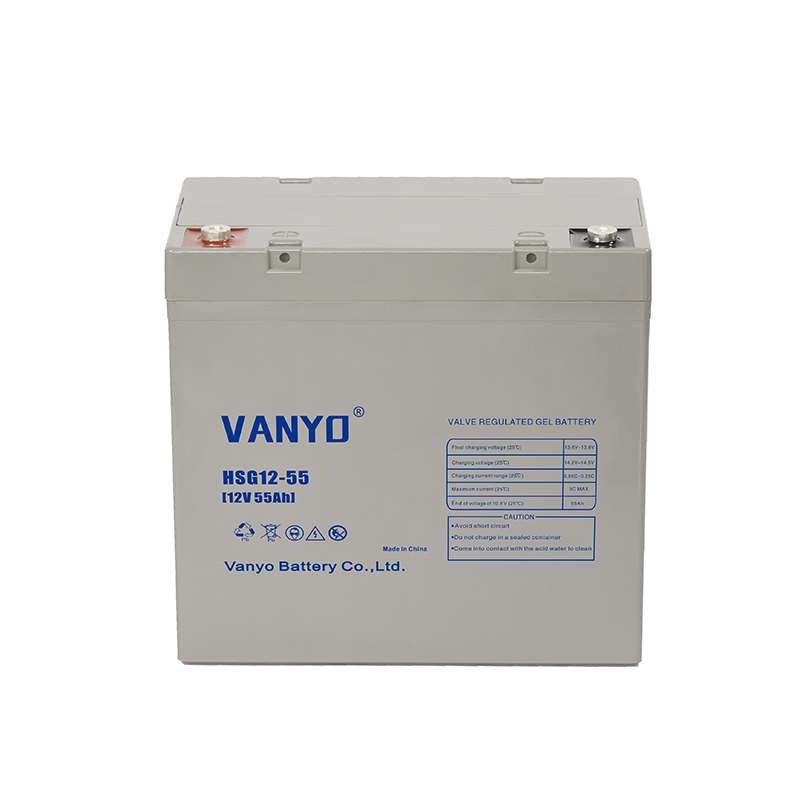

High Rate Discharge VRLA Batteries 12V55( 2) High Rate Discharge VRLA Batteries 12V55( 2)

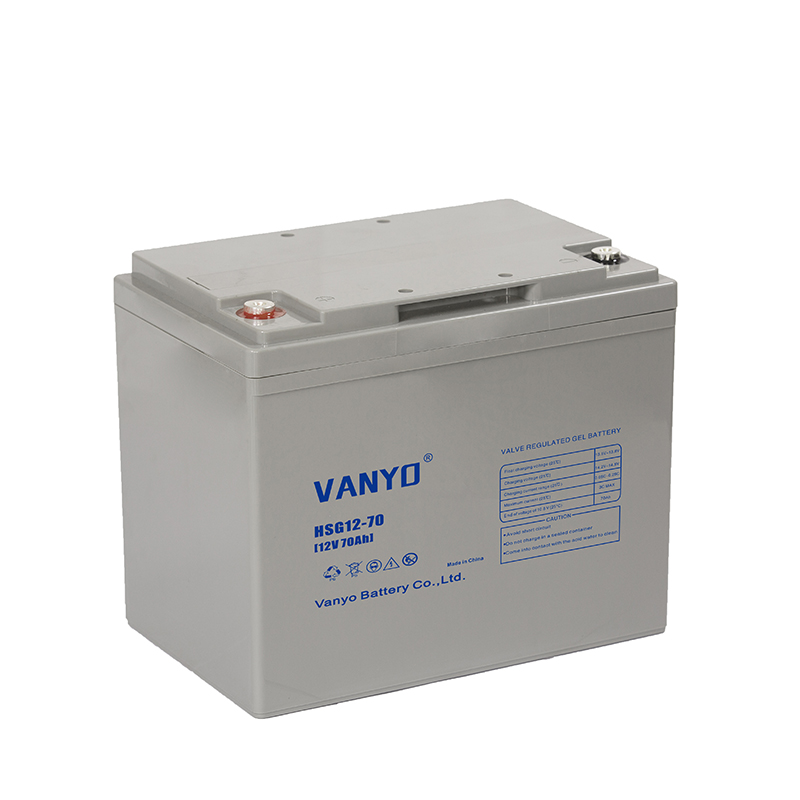

High Rate Discharge VRLA Batteries 12V70 ( 1) High Rate Discharge VRLA Batteries 12V70 ( 1)

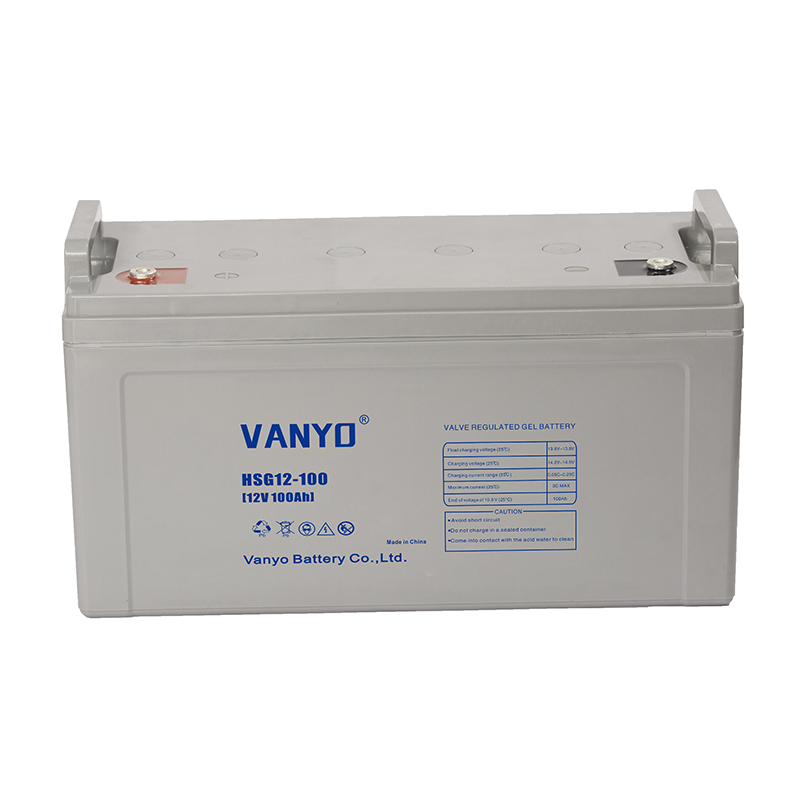

High Rate Discharge VRLA Batteries 12V100 ( 2) High Rate Discharge VRLA Batteries 12V100 ( 2)
High Rate Discharge VRLA Batteries High Rate Discharge VRLA Batteries

Parameter

Voltage class: 6V/12V

Capacity range: 16W~850W

Technical Features

HR (High Rate) series is especially designed for heavy load discharge applications with 8 to 15 years design life in float service. By using strong grids and specially designed active material the HR series offers stable performance during high current discharge requirements .The HR series offers 30% more power output than the standard range.

Application

Suitable for UPS/EPS, data centers where high current loads are required.

Design Features

  • Superior energy density and very high power output

  • Low self-discharge performance

  • Wide operation temperature range

  • Long design life

Certificate

CE, UL, IEC60896-21/22, ISO9001, ISO14001, TLC, OHSAS18001, seismic certificates, etc.

Specifications

Model Voltage（V) Capacity15min/1.67VPC（W） Weight（Kg） Dimension（mm) Terminal type
Length Width Height Total Height
KG LBS mm inch mm inch mm inch mm inch
HR6-630W 6 630 25.5 56.22 260 10.24 180 7.09 245 9.65 252 9.92 F12(M8)
HR6-850W 6 850 33 72.75 243 9.57 187 7.36 275 10.83 275 10.83 F14(M8)
HR6-16W 6 16 0.68 1.5 70 2.76 47 1.85 99 3.9 105 4.13 F2
HR6-18W 6 18 0.7 1.54 70 2.76 47 1.85 99 3.9 105 4.13 F2
HR6-20W 6 20 0.72 1.59 70 2.76 47 1.85 99 3.9 105 4.13 F2
HR6-22W 6 22 0.75 1.65 70 2.76 47 1.85 99 3.9 105 4.13 F2
HR6-28W 6 28 1.1 2.43 151 5.94 34 1.34 94 3.7 100 3.94 F2
HR6-32W 6 32 1.15 2.54 151 5.94 34 1.34 94 3.7 100 3.94 F2
HR6-36W 6 36 1.35 2.98 151 5.94 34 1.34 94 3.7 100 3.94 F2
HR12-16W 12 16 1.32 2.91 90 3.54 70 2.76 101 3.98 107 4.21 F2
HR12-18W 12 18 1.5 3.31 90 3.54 70 2.76 101 3.98 107 4.21 F2
HR12-20W 12 20 1.51 3.33 90 3.54 70 2.76 101 3.98 107 4.21 F2
HR12-20BW 12 20 1.45 3.2 151 5.94 50 1.97 95 3.74 101 3.98 F2
HR12-22W 12 22 1.55 3.42 90 3.54 70 2.76 101 3.98 107 4.21 F2
HR12-28W 12 28 2.08 4.59 151 5.94 65 2.56 94 3.7 100 3.94 F2
HR12-32W 12 32 2.2 4.85 151 5.94 65 2.56 94 3.7 100 3.94 F2
HR12-36W 12 36 2.6 5.73 151 5.94 65 2.56 94 3.7 100 3.94 F2
HR12-38W 12 38 2.45 5.4 151 5.94 65 2.56 94 3.7 100 3.94 F2
HR12-48W 12 48 3.15 6.94 151 5.94 98 3.86 95 3.74 101 3.98 F2
HR12-50W 12 50 4.2 9.26 181 7.13 77 3.03 167 6.57 167 6.57 F13(M5)
HR12-60W 12 60 4.65 10.25 181 7.13 77 3.03 167 6.57 167 6.57 F13(M5)
HR12-68W 12 68 4.9 10.8 181 7.13 77 3.03 167 6.57 167 6.57 F13(M5)
HR12-70W 12 70 5.6 12.35 181 7.13 77 3.03 167 6.57 167 6.57 F13(M5)
HR12-80W 12 80 6.2 13.67 181 7.13 77 3.03 167 6.57 167 6.57 F13(M5)
HR12-88W 12 88 6.2 13.67 181 7.13 77 3.03 167 6.57 167 6.57 F18(M5)
HR12-96W 12 96 8.1 17.86 166 6.54 176 6.93 125 4.92 125 4.92 F13(M5)
HR12-104W 12 104 8.6 18.96 166 6.54 176 6.93 125 4.92 125 4.92 F13(M5)
HR12-125W 12 125 10.2 22.49 195 7.68 130 5.12 155 6.1 168 6.61 F11(M6)
HR12-150W 12 150 12.4 27.34 198 7.8 166 6.54 169 6.65 169 6.65 F11(M6)
HR12-200W 12 200 16.5 36.38 229 9.02 138 5.43 211 8.31 216 8.5 F11(M6)
HR12-240W 12 240 19.5 42.99 350 13.78 167 6.57 182 7.17 182 7.17 F11(M6)
HR12-280W 12 280 24.8 54.67 260 10.24 169 6.65 211 8.31 216 8.5 F11(M6)
HR12-340W 12 340 29 63.93 306.5 12.07 168.5 6.63 210 8.27 215 8.46 F12(M8)
HR12-380W 12 380 30.5 67.24 328 12.91 172 6.77 215 8.46 220 8.66 F12(M8)
HR12-380SW 12 380 30 66.14 306.5 12.07 168.5 6.63 210 8.27 215 8.46 F12(M8)
HR12-450W 12 450 36.5 80.47 407 16.02 177 6.97 225 8.86 225 8.86 F12(M8)
HR12-520W 12 520 44 97 340 13.39 173 6.81 280 11.02 287 11.3 F12(M8)
HR12-580W 12 580 47 103.62 340 13.39 173 6.81 280 11.02 287 11.3 F12(M8)
HR12-570W 12 570 46 101.41 483 19.02 170 6.69 241 9.49 241 9.49 F12(M8)
HR12-570SW 12 570 45 99.21 340 13.39 173 6.81 280 11.02 287 11.3 F12(M8)
HR12-620W 12 620 56 123.46 532 20.94 207 8.15 214 8.43 219 8.62 F12(M8)
HR12-650W 12 650 61 134.48 522 20.55 240 9.45 219 8.62 224 8.82 F10(M8)
HR12-690W 12 690 63.5 139.99 522 20.55 240 9.45 219 8.62 224 8.82 F10(M8)
HR12-780W 12 780 72 158.73 522 20.55 240 9.45 219 8.62 224 8.82 F10(M8)
HR12-850W 12 850 80.5 177.47 521 20.51 268 10.55 220 8.66 225 8.86 F10(M8)
