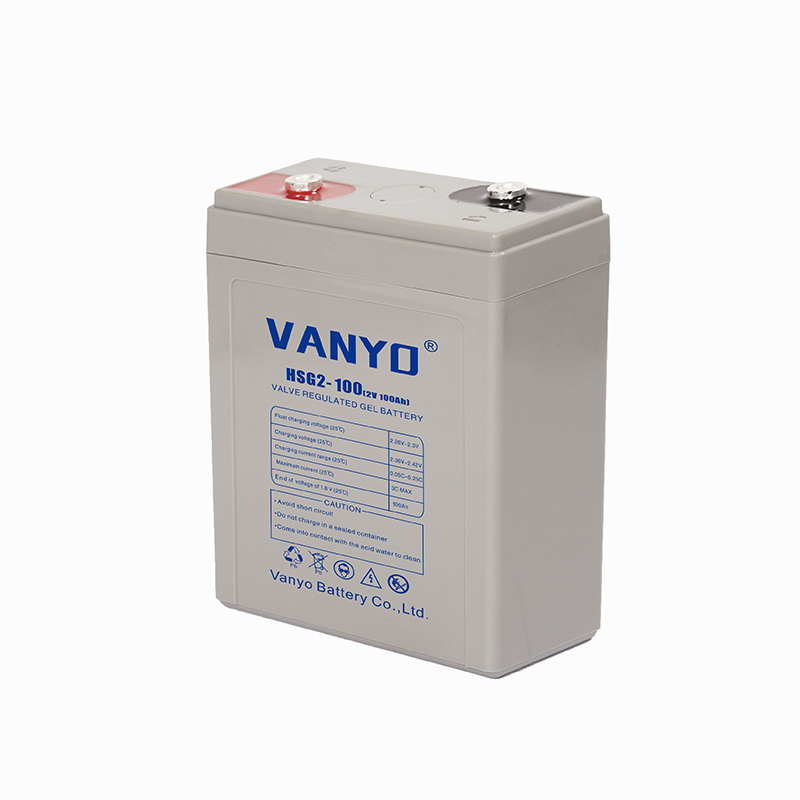

AGM 2V Series VRLA Batteries from 200Ah to 3000Ah 2V100 （ 1 ） AGM 2V Series VRLA Batteries from 200Ah to 3000Ah 2V100 （ 1 ）

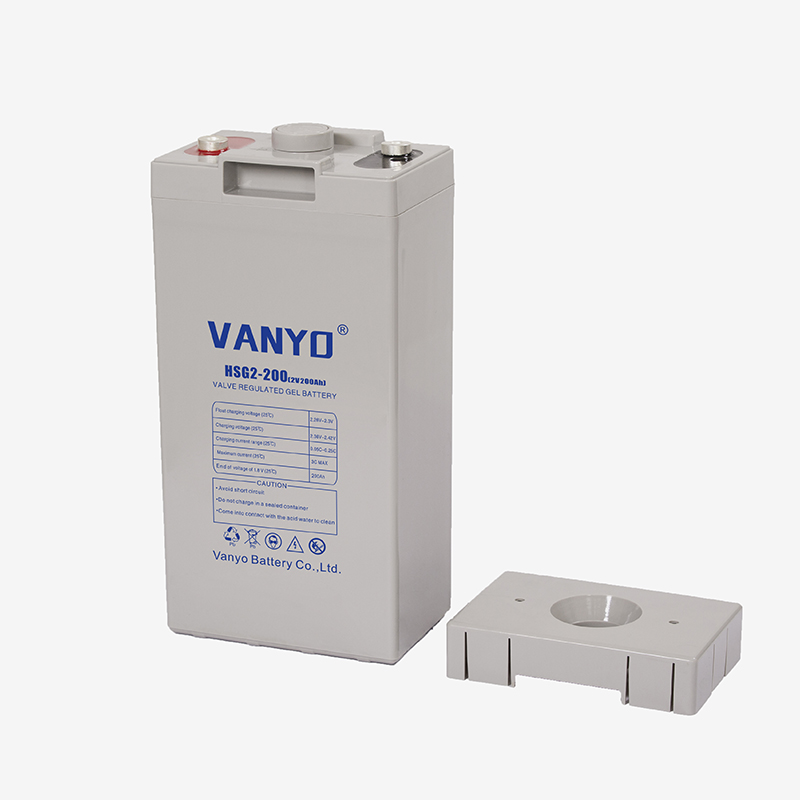

AGM 2V Series VRLA Batteries from 200Ah to 3000Ah 2V200 （ 1 ） AGM 2V Series VRLA Batteries from 200Ah to 3000Ah 2V200 （ 1 ）

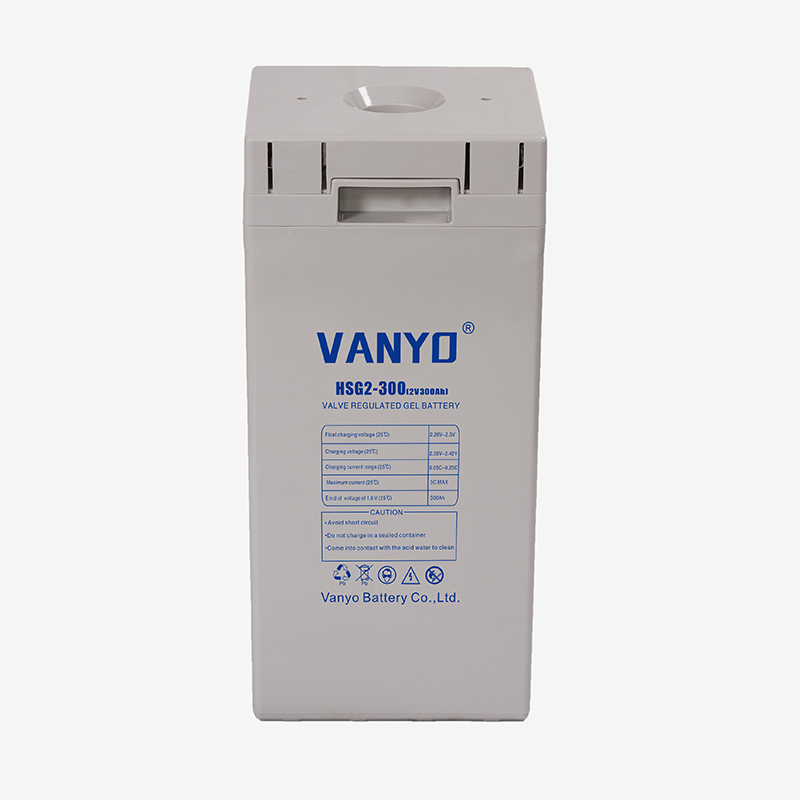

AGM 2V Series VRLA Batteries from 200Ah to 3000Ah 2V300 （ 1 ） AGM 2V Series VRLA Batteries from 200Ah to 3000Ah 2V300 （ 1 ）

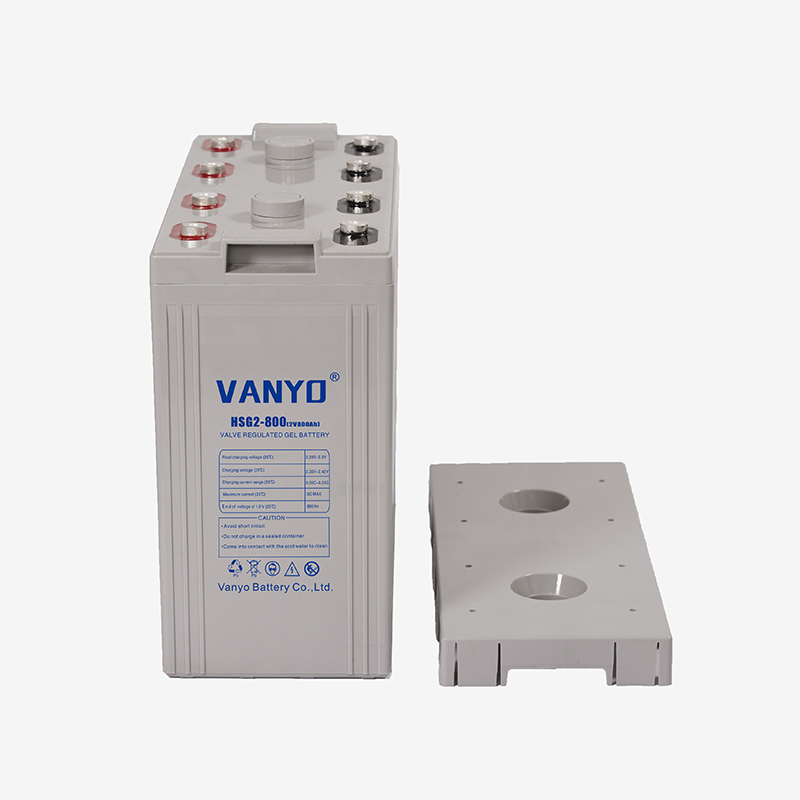

AGM 2V Series VRLA Batteries from 200Ah to 3000Ah 2V800（2 ） AGM 2V Series VRLA Batteries from 200Ah to 3000Ah 2V800（2 ）

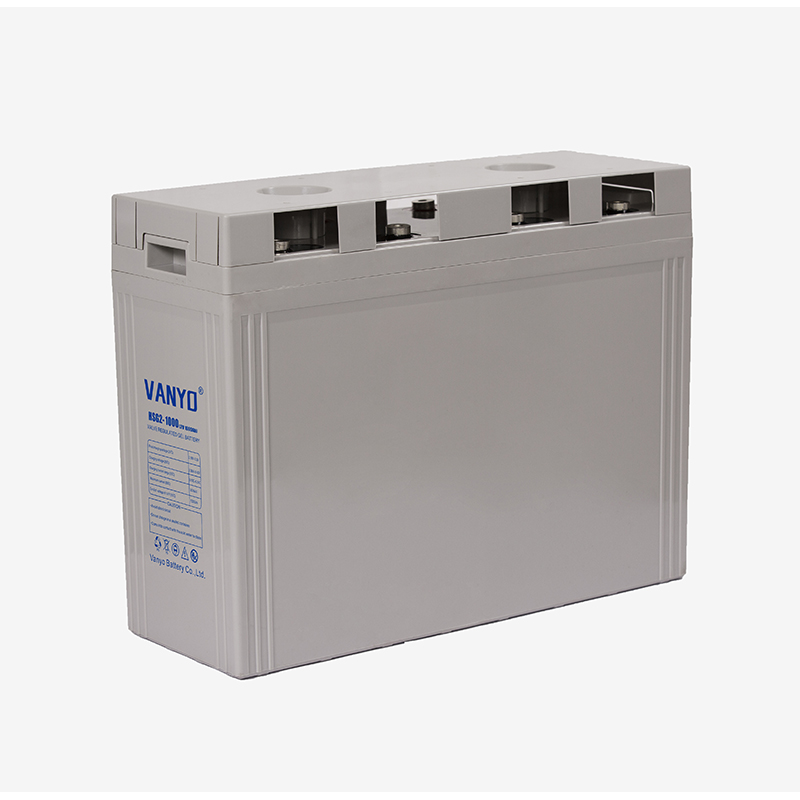

AGM 2V Series VRLA Batteries from 200Ah to 3000Ah 2V1000（3 ） AGM 2V Series VRLA Batteries from 200Ah to 3000Ah 2V1000（3 ）

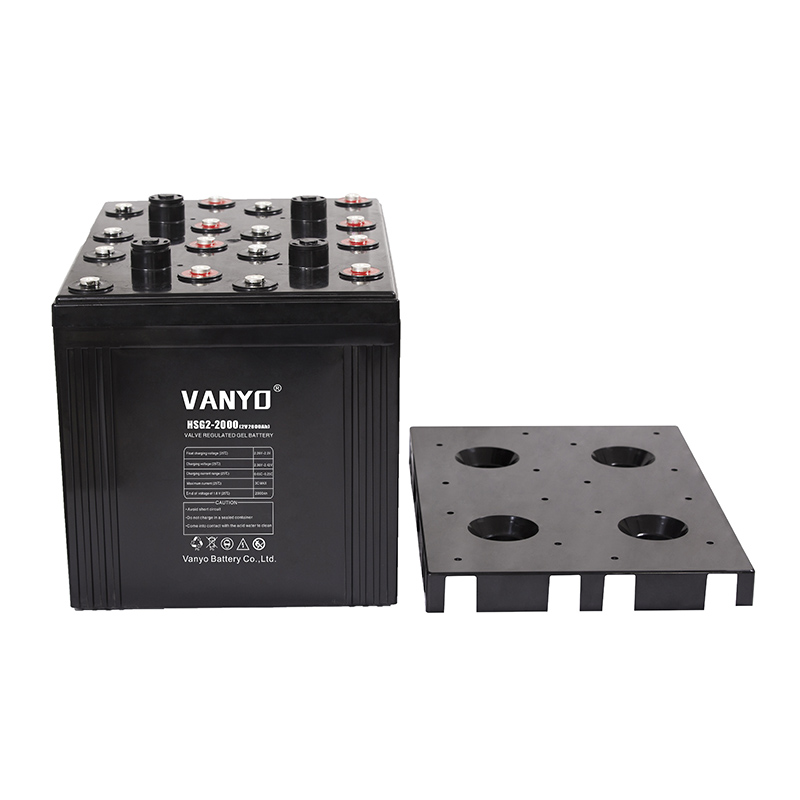

AGM 2V Series VRLA Batteries from 200Ah to 3000Ah 2V2000（ 1 ） AGM 2V Series VRLA Batteries from 200Ah to 3000Ah 2V2000（ 1 ）

Parameter

Capacity range: 100Ah-3000Ah (25℃)

Voltage range: 2V/6V/12V

Low self-discharge rate: 25℃, less than 2% per month

Technical Features

Cycle times: (25℃) 30% depth of discharge: 1700 times (12V/6V) 2000 times (2V)
50% discharge depth: 800 times (12V/6V) 1000 times (2V)
100% discharge depth: 400 times (12V/6V) 500 times (2V)
Both deep discharge and shallow discharge are possible

Long design life: 25℃, floating charge life, 12V: 12 years; 2V/6V: 18 years

Applicable ambient temperature: -15-50℃

Working temperature range: -20-50℃

Suggested working temperature: 25℃

Application

Control systems, electric toys, emergency lights, power tools, alarm systems, emergency lighting systems, backup power systems, UPS, power systems, telecommunications equipment, fire and security defense systems, railway systems and power stations, etc.

Design Features

  • Long service life

  • High reliability and good quality

  • Good deep discharge performance

  • Very strong discharge recovery ability

Certificate

CE, UL, IEC60896-21/22, ISO9001, ISO14001, TLC, OHSAS18001, seismic certificates, etc.

Specifications

Model Voltage（V) Capacity(Ah) Weight（Kg） Dimension（mm) Terminal type
Length Width Height Total Height
KG LBS mm inch mm inch mm inch mm inch
HSG2-100Ah 2 100 5.3 11.68 171 6.73 72 2.83 205 8.07 210 8.27 T16
HSG2-150Ah 2 150 8 17.64 171 6.73 102 4.02 206 8.11 221 8.7 T20
HSG2-200Ah 2 200 12.7 28 171 6.73 111 4.37 330 12.99 364 14.33 T20
HSG2-200SR 2 200 14 30.86 208 8.19 111 4.37 240 9.45 245 9.65 F10(M8)
HSG-250R 2 250 13.3 29.32 170 6.69 106 4.17 330 12.99 342 13.46 F10(M8)
HSG2-300Ah 2 300 18 39.68 171 6.73 151 5.94 330 12.99 364 14.33 T20
HSG2-400R 2 400 19 41.89 170 6.69 150 5.91 330 12.99 342 13.46 F10(M8)
HSG2-400Ah 2 400 25.5 56.22 210 8.27 176 6.93 330 12.99 367 14.45 T20
HSG2-500Ah 2 500 30 66.14 241 9.49 171 6.73 330 12.99 365 14.37 T20
HSG2-600Ah 2 600 36.5 80.47 302 11.89 175 6.89 330 12.99 367 14.45 T20
HSG2-800Ah 2 800 50.5 111.33 410 16.14 175 6.89 330 12.99 367 14.45 T20
HSG2-1000Ah 2 1000 60.5 133.38 475 18.7 175 6.89 330 12.99 367 14.45 T20
HSG2-1200R 2 1200 60 132.28 471 18.54 171 6.73 330 12.99 342 13.46 F10(M8)
HSG2-1500Ah 2 1500 93 205.03 400 15.75 350 13.78 345 13.58 382 15.04 T20
HSG2-2000Ah 2 2000 126 277.78 490 19.29 350 13.78 345 13.58 382 15.04 T20
HSG2-2500R 2 2500 121 266.75 476 18.74 337 13.27 330 12.99 342 13.46 F10(M8)
HSG2-3000Ah 2 3000 186 410.06 710 27.95 350 13.78 345 13.58 382 15.04 T20
